DG MAH Brazos AL 68-1-1 | 6'-8" Arch ...

6'-8" Arch Lite Mahogany Wood Entry Door and One Sidelite with Brazos Decorative Glass

Disclaimer: Images may vary in finish or glass details from your chosen configuration.

Available Configurations

DG MAH Brazos AL 68 | 6'-8" Arch Lite Mahogany Wood Entry Door with Brazos Decorative Glass - Available Configuration Option 1

DG MAH Brazos AL 68-1-2 | 6'-8" Arch Lite Mahogany Wood Entry Door and Two Sidelites with Brazos Decorative Glass - Available Configuration Option 2

Product image gallery with zoom

Double-tap to zoom

PRODUCT #288345

6'-8" Arch Lite Mahogany Wood Entry Door and One Sidelite with Brazos Decorative Glass

Brand: GlassCraft | Model: DG MAH Brazos AL 68-1-1

Door Size (W x H)

Door Size (Width x Height)

Pre-Hanging Make your selection

Door Only (Slab)
Door slabs require prep/mortising for hinges, drilling for handle/lockset, trimming for reveals, and door sweep, on location, before the door slab will be ready to be installed into the existing frame.
If you're replacing a single door and the existing door frame is in good condition, there's typically no need to replace the frame, just the door slab can be replaced.
For double door slab replacements, which can be done, you will need the same type of prep work noted above, plus some additional components for install to an existing frame. We recommend, for ease and accuracy, to replace the existing double door with a new pre-hung double door unit.
Pre-Hung Door
Pre-hanging doors come pre-assembled for ease and accurate installation of your new door unit.
Your pre-hung door will come pre-assembled with the following items:
Exterior pre-hanging door components include: door slab, door frame (made up of jamb legs, jamb header and threshold/sill), hinges (3 hinges for 6’8” door and 4 hinges for 8’ tall door) Kerf weatherstripping, and door sweep.
Interior pre-hanging door components include: door slab, frame, and hinges
If this is what you need, please select "Yes" from the pre-hanging options.

No Yes (+$1,525)

Factory Finish Options Make your selection

Color Disclaimer
It's important to note that factory finish color options displayed online may vary slightly from the actual finish color on the product/s you receive. While they are a vary close representation, the digital colors on screens can be influenced by various factors, including monitor settings, screen resolution, and lighting conditions. Additionally, different manufacturers and brands may interpret and reproduce colors differently. As a result, the colors you see on this website may not always perfectly match the real-world appearance of the products.
IMPORTANT
Please be aware that by selecting a factory finish for a door slab or prehung unit, you are agreeing to the item being considered non-returnable and non-refundable.

Selected

Unfinished Wood

Unfinished Wood

Traditional Finish - Natural

Traditional Finish - Winter White

Traditional Finish - Cinnamon Red

Traditional Finish - Canyon Brown

Traditional Finish - Charcoal

Traditional Finish - Forest Grey

Traditional Finish - Slate Grey

Traditional Finish - Owl Grey

Traditional Finish - Timber Wolf Grey

Antique Finish - Natural

Antique Finish - Winter White

Antique Finish - Sierra Brown

Antique Finish - Canyon Brown

Antique Finish - Cinnamon Red

Antique Finish - Forest Grey

Antique Finish - Slate Grey

Antique Finish - Owl Grey

Antique Finish - Timber Wolf Grey

Distressed Finish - Natural

Distressed Finish - Winter White

Distressed Finish - Sierra Brown

Distressed Finish - Canyon Brown

Distressed Finish - Cinnamon Red

Distressed Finish - Forest Grey

Distressed Finish - Slate Grey

Distressed Finish - Owl Grey

Distressed Finish - Timber Wolf Grey

Glass Caming Finish Make your selection

Glass Caming Finish

Sidelite Width Make your selection

12" 14"
Door Jamb Make your selection

What jamb size do I need?
When you're ordering a pre-hung door, one of the key things to double-check is the door jamb size. If you are installing the door in a wall with standard 2x4 studs, common sizes are 4-5/8" or 4-9/16". If your wall has 2x6 framing, you will want to go with a larger jamb, like 6-5/8" or 6-9/16".

If you are replacing an existing door and already have a jamb in place, take a look at the diagram below. It shows what part of the door unit to measure. If your measurement does not match the standard sizes mentioned above, or if you are not sure about it your measurement, it’s a good idea to check with your installer to avoid any issues.

Need a custom jamb size? No problem! Just give us a call, and one of our team members will be happy to help you out.
IMPORTANT
When you order a pre-hung door, it’s considered non-returnable and non-refundable, so make sure everything’s just right before you finalize your order. Let us know if you have any questions — we are here to help!"

4-5/8" Mahogany Jambs 6-5/8" Mahogany Jambs (+$260)

Exterior Brickmould Make your selection

Exterior Door Trim
Exterior door trim refers to the decorative and functional elements installed around the outer frame of an exterior door. This trim serves multiple purposes, including enhancing the aesthetic appeal of the doorway, providing weather protection, and helping to seal gaps between the door and the wall. Exterior door trim can be made from various materials, such as wood, vinyl, metal, or composite materials.

No Exterior Brickmould

1-1/4"x2" WM180 Profile Knotty Alder Brickmould (+$175)

Exterior Brickmould Make your selection

Exterior Door Trim
Exterior door trim refers to the decorative and functional elements installed around the outer frame of an exterior door. This trim serves multiple purposes, including enhancing the aesthetic appeal of the doorway, providing weather protection, and helping to seal gaps between the door and the wall. Exterior door trim can be made from various materials, such as wood, vinyl, metal, or composite materials.

No Exterior Brickmould

1-1/4"x2" WM180 Profile Mahogany Brickmould (+$145)

Handing Make your selection

Left Hand Inswing, Left Sidelite (Exterior View)

Left Hand Inswing, Right Sidelite (Exterior View)

Left Hand Outswing, Left Sidelite (Exterior View)

Left Hand Outswing, Right Sidelite (Exterior View)

Right Hand Inswing, Left Sidelite (Exterior View)

Right Hand Inswing, Right Sidelite (Exterior View)

Right Hand Outswing, Left Sidelite (Exterior View)

Right Hand Outswing, Right Sidelite (Exterior View)
Hinges Make your selection

Hardware Color Explanation
Black/Bronze
Black/bronze is a versatile color option that combines the deep, rich tones of black with the warm, earthy hues of a dark bronze. It often appears as a dark, matte finish that can add a sense of sophistication and elegance to various design elements. Black/bronze finishes are commonly used in interior and exterior hardware, such as door handles, hinges, and door sills.
Note: The bronze color used is often mistaken for black and will work well with black or bronze handle and lock sets.
Satin Nickel:
Satin nickel is a popular metallic finish known for its smooth, muted sheen and silver-gray appearance. It is achieved by applying a nickel plating with a brushed or satin finish, resulting in a soft, matte surface. Satin nickel is a versatile choice for a wide range of applications, including door hardware, hinges and sills. Its subtle luster gives it a modern and timeless aesthetic that can complement both contemporary and traditional design styles.

Black

Bronze

Satin Nickel

Sill Make your selection

Hardware Color Explanation
Black/Bronze
Black/bronze is a versatile color option that combines the deep, rich tones of black with the warm, earthy hues of a dark bronze. It often appears as a dark, matte finish that can add a sense of sophistication and elegance to various design elements. Black/bronze finishes are commonly used in interior and exterior hardware, such as door handles, hinges, and door sills.
Note: The bronze color used is often mistaken for black and will work well with black or bronze handle and lock sets.
Satin Nickel:
Satin nickel is a popular metallic finish known for its smooth, muted sheen and silver-gray appearance. It is achieved by applying a nickel plating with a brushed or satin finish, resulting in a soft, matte surface. Satin nickel is a versatile choice for a wide range of applications, including door hardware, hinges and sills. Its subtle luster gives it a modern and timeless aesthetic that can complement both contemporary and traditional design styles.

Black/Bronze

Mill Aluminum

Handle Preparation Make your selection

How should I have the door prepared for a handle and/or a lock set?
Preparation for Handle and Deadbolt
This is the most commonly recommended method and is considered a universal preparation that should be compatible with most standard handle and deadbolt sets available on the market. The door will be drilled with a standard 2-3/8" backset and a 2-1/8" diameter hole. The handle and deadbolt holes will be spaced 5-1/2" center to center, designed to accommodate all-in-one units.
Handle and Deadbolt with Factory Hardware
Your door will be prepared for a handle and a deadbolt, and you have the option to choose from factory hardware selections that can come pre-prepared and, in many cases, pre-installed.
No Handle Preparation
Your door will not be prepared for any hardware, allowing you the flexibility to have it prepared on-site to match the handle and/or lock set style of your choice.
Handle Only
The door will be drilled with a standard 2-3/8" backset and a 2-1/8" diameter hole specifically for a handle.
Deadbolt Only
The door will be drilled with a standard 2-3/8" backset and a 2-1/8" diameter hole specifically for a deadbolt.
Multipoint
*** IMPORTANT *** Before selecting this option, please be aware that procuring your own handleset for this style of preparation can be challenging due to the variety of multipoint locking systems and brands available. We highly recommend speaking with one of our professionals before choosing this option. If you desire the multipoint locking option, we suggest selecting "Multipoint with Factory Hardware."
Multipoint with Factory Hardware
This option provides you with a multipoint locking system, including a handleset from the manufacturer that is guaranteed to work seamlessly with your multipoint locking system.

Handle Preparation

Multipoint Handle Options Make your selection

PanoLock (Mechanism Only)

Emtek Baden Black (+$460)

Emtek Baden Satin Nickel (+$460)

Emtek Jefferson Black (+$620)

Emtek Jefferson Satin Nickel (+$620)

Emtek Lausanne Black (+$620)

Emtek Lausanne Satin Nickel (+$620)

Tubular Entry Set Make your selection

Emtek Baden Black (+$460)

Emtek Baden Satin Nickel (+$460)

Emtek Jefferson Black (+$620)

Emtek Jefferson Satin Nickel (+$620)

Emtek Lausanne Black (+$620)

Emtek Lausanne Satin Nickel (+$620)

Review Your Build

Door Size: 32"x80"

Factory Finish Options: Unfinished

Sidelite Width:

Pre-Hanging: No

Door Jamb: No Door Jamb

Exterior Brickmould: No Exterior Brickmould

Handing: Left Inswing

Hinges: None Selected

Sill: No Sills

Handle Preparation: No Handle Preparation

Multipoint Handle Options: No Multipoint Handle Options

Tubular Entry Set: No Tubular Entry Set

Quantity

Product Price

Total price: $2,851

Safe & Secure Delivery

Your order will be securely crated and shipped via trusted freight partners to ensure safe delivery to your home or job site. Shipping is calculated at checkout based on your location and order size.

Available Configurations

DG MAH Brazos AL 68 | 6'-8" Arch Lite Mahogany Wood Entry Door with Brazos Decorative Glass - Available Configuration Option 1

DG MAH Brazos AL 68-1-2 | 6'-8" Arch Lite Mahogany Wood Entry Door and Two Sidelites with Brazos Decorative Glass - Available Configuration Option 2

Need help with your order?

Speak with a doors.com specialist.

(877) 929-3667

Mon - Fri | 8AM - 6PM CST

Instagram
Facebook
Pinterest

1 Item Added to Cart ()

View Cart & Checkout

DG MAH Brazos AL 68-1-1 | 6'-8" Arch Lite Mahogany Wood Entry Door and One Sidelite with Brazos Decorative Glass

Product Description

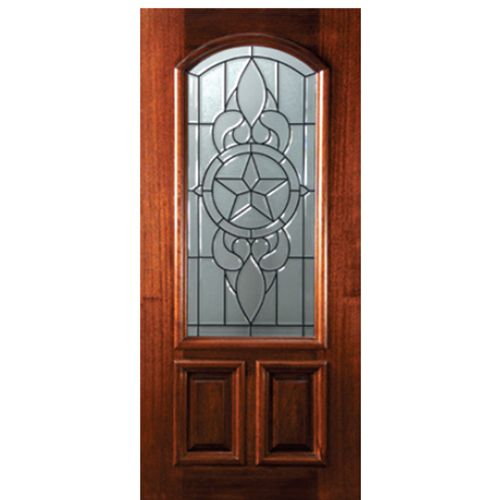

6'-8" tall arch lite Mahogany entry door and one sidelite with fully beveled decorative glass
Raised moulding applied around the wood and glass panels for a rich look
Triple-thick IG (insulated glass) panels permanently seal the decorative glass panel inside of two sheets of tempered safety glass
Insulated glass panels improve security, are more energy efficient, easy to clean, and help to protect the beveled glass panel from possible breakage
100% fully beveled hand-cut glass provide maximum amount of brilliance and sparkle
Black caming (caming is the metal dividers that create the decorative glass designs and hold individual pieces of glass in place)
Mahogany is a reddish-brown hardwood with rich golden to deep red-brown color variations
Door features laminated, engineered stiles and rails construction to virtually eliminate warping
Door panels are constructed using a 3-piece assembly that incorporates a cross-grained spline in the core to eliminate panel splitting
Doors are assembled using an authentic doweled cove-and-bead technique
All door parts are hand matched to ensure consistent appearance and performance
Wood is carefully kiln-dried and is ready for staining
Prefinish optional
Picture illustrates a finished door unit
Priced per door and one sidelite
1 year limited warranty for unfinished and factory finished doors
ADA sill (threshold) and multipoint locking system are available, please call us for details

Please note: Door frame will ship disassembled to prevent damage during transit. Frame assembly is straightforward and requires only a screwdriver. All screws and parts are included.

SPECS:

Door Type:	Exterior
Door Style:	Arch Lite, Decorative Glass
Wood Species:	Mahogany
Core:	Mahogany
Construction:	Engineered Stile and Rail
Door Thickness:	1-3/4"
Glass Type	Tempered, Insulated Glass
Glass Privacy Rating	4
Unit Size:	32" Door With 12" Sidelite: 47" x 82" 32" Door With 14" Sidelite: 49" x 82" 36" Door With 12" Sidelite: 51" x 82" 36" Door With 14" Sidelite: 53" x 82"
Rough Opening Size:	32" Door With 12" Sidelite: 47-3/4" x 82-1/2" 32" Door With 14" Sidelite: 49-3/4" x 82-1/2" 36" Door With 12" Sidelite: 51-3/4" x 82-1/2" 36" Door With 14" Sidelite: 53-3/4" x 82-1/2"
Finished:	Optional
Florida Approved:	No
FSC Certified:	No
Warranty:	1 Year Limited Manufacturer Warranty

Specs & Measurements

Door Type: Exterior Door

Material: Wood, Mahogany

Style: Decorative Glass

Click a link below to view detailed dimensions:

Frame Dimensions
Rough Openings Dimensions

Manufacturer Information Links:

Manufacturer Overview

Shipping & Lead Times

All doors and door units are shipped via LTL ( Less than truckload ). We ship manufacturer direct to your preferred location. Once your order has shipped we will provide you with the carrier name and contact. They will contact you to schedule a day and time for delivery. For detailed information regarding our shipping and shipping policies, please click here.

Lead Times:

We make every effort to provide the best estimated lead times for each vendor by analyzing the latest available data and visible trends.

Manufacturer Name: GlassCraft

Unfinished Door Slab 1-2 Weeks

Finished Door Slab 3-4 Weeks

Unfinished Prehung Unit 3-4 Weeks

Finished Prehung Unit 4-5 Weeks

Warranty Information

At doors.com, we hold the privilege of being an Authorized Dealer for the esteemed brands we carry. When you choose to purchase from an authorized dealer, you are making a decision rooted in trustworthiness and reliability. Our direct sourcing from manufacturers ensures that you receive factory-fresh products backed by comprehensive warranties.

We strongly encourage you to thoroughly review the manufacturer's warranty, ensuring compliance with all stipulations and guidelines. Your satisfaction and confidence in your purchase are of paramount importance to us.

GlassCraft offers a limited warranty for (1-5) years.

Access and download the warranty provided by the manufacturer for this product here.

GlassCraft Artisan Estate Finish Fiberglass Door Warranty GlassCraft Barncraft Rolling Door and Hardware Warranty GlassCraft Fiberglass Palette Collection Paint Finish Warranty GlassCraft Fiberglass Value Series Door Slab Warranty GlassCraft Prefinished Wood Door Warranty GlassCraft Unfinished Fiberglass PRO Door Limited Warranty GlassCraft Unfinished Fiberglass Premium Door Limited Warranty GlassCraft Unfinished Wood Door Warranty
